Hybrid Quantum-Classical Model Exploration
Overview
This notebook is inspired from https://opg.optica.org/viewmedia.cfm?r=1&rwjcode=opticaq&uri=opticaq-3-3-238&html=true and demonstrates a comparison between hybrid quantum-classical models and traditional linear models for image classification using the MNIST dataset. The implementation leverages the Merlin framework for quantum neural networks and PyTorch for classical neural networks.
Key Components
1. Model Architectures
QuantumReservoir Model
The main hybrid architecture combines:
A quantum layer processing PCA-reduced image features
A linear classifier operating on the concatenation of the original flattened image and quantum output
Linear Model
A simple linear classifier operating directly on flattened image features, serving as a baseline for comparison.
PCA Model
A linear classifier operating on PCA-reduced features to evaluate the information content of the dimensionality reduction.
2. Data Preparation
The MNIST dataset (Perceval Quest subset) is loaded using the custom
mnist_digitsmoduleImages are flattened and normalized
Principal Component Analysis (PCA) reduces feature dimensionality to a specified number of components
[1]:
import torch
import torch.nn as nn
import numpy as np
from sklearn.decomposition import PCA
import matplotlib.pyplot as plt
import merlin
from merlin import Ansatz
from merlin import PhotonicBackend as Experiment
from merlin import CircuitType
from merlin import AnsatzFactory
from merlin import QuantumLayer
from merlin import OutputMappingStrategy
from merlin import StatePattern
import perceval as pcvl # just to display the circuit
[2]:
# Simple Baseline Linear Model
class LinearModelBaseline(nn.Module):
def __init__(self, image_size, num_classes=10):
super(LinearModelBaseline, self).__init__()
self.image_size = image_size
# Classical part
self.classifier = nn.Linear(image_size, num_classes)
def forward(self, x):
# Data is already flattened
output = self.classifier(x)
return output
[3]:
# LinearModel with PCA
class LinearModelPCA(nn.Module):
def __init__(self, image_size, pca_components, num_classes=10):
super(LinearModelPCA, self).__init__()
self.image_size = image_size
self.pca_components = pca_components
# Classical part
self.classifier = nn.Linear(image_size + pca_components, num_classes)
def forward(self, x, x_pca):
# Data is already flattened, just concatenate
combined_features = torch.cat((x, x_pca), dim=1)
output = self.classifier(combined_features)
return output
[4]:
# definition of QuantumReservoir class - quantum layer applying on pca, and linear classifier on input and pca
class QuantumReservoir(nn.Module):
def __init__(self, image_size, pca_components, n_modes, n_photons, num_classes=10):
super(QuantumReservoir, self).__init__()
self.image_size = image_size
self.pca_components = pca_components
self.n_modes = n_modes
self.n_photons = n_photons
# Quantum part (non-trainable reservoir)
self.quantum_layer = self._create_quantum_reservoir(
pca_components, n_modes, n_photons
)
# Classical part
self.classifier = nn.Linear(
image_size + self.quantum_layer.output_size,
num_classes
)
print(f"\nQuantum Reservoir Created:")
print(f" Input size (PCA components): {pca_components}")
print(f" Quantum output size: {self.quantum_layer.output_size}")
print(f" Total features to classifier: {image_size + self.quantum_layer.output_size}")
def _create_quantum_reservoir(self, input_size, n_modes, n_photons):
"""Create quantum layer with Series circuit in reservoir mode."""
# Create experiment with Series circuit
experiment = Experiment(
circuit_type=CircuitType.SERIES,
n_modes=n_modes,
n_photons=n_photons,
reservoir_mode=True, # Non-trainable quantum layer
use_bandwidth_tuning=False, # No bandwidth tuning
state_pattern=StatePattern.PERIODIC
)
# Create ansatz with automatic output size
ansatz = AnsatzFactory.create(
PhotonicBackend=experiment,
input_size=input_size,
# output_size not specified - will be calculated automatically
output_mapping_strategy=OutputMappingStrategy.NONE
)
# Create quantum layer
quantum_layer = QuantumLayer(
input_size=input_size,
ansatz=ansatz,
shots=10000, # Number of measurement shots
no_bunching=False
)
return quantum_layer
def forward(self, x, x_pca):
# Process the PCA-reduced input through quantum layer
quantum_output = self.quantum_layer(x_pca)
# Concatenate original image features with quantum output
combined_features = torch.cat((x, quantum_output), dim=1)
# Final classification
output = self.classifier(combined_features)
return output
[5]:
from merlin.datasets import mnist_digits
train_features, train_labels, train_metadata = mnist_digits.get_data_train_percevalquest()
test_features, test_labels, test_metadata = mnist_digits.get_data_test_percevalquest()
# Flatten the images from (N, 28, 28) to (N, 784)
train_features = train_features.reshape(train_features.shape[0], -1)
test_features = test_features.reshape(test_features.shape[0], -1)
# Convert data to PyTorch tensors
X_train = torch.FloatTensor(train_features)
y_train = torch.LongTensor(train_labels)
X_test = torch.FloatTensor(test_features)
y_test = torch.LongTensor(test_labels)
print(f"Dataset loaded: {len(X_train)} training samples, {len(X_test)} test samples")
Dataset loaded: 6000 training samples, 600 test samples
[6]:
n_components=8
M=9
N=4
[7]:
# train PCA
from sklearn.decomposition import PCA
pca = PCA(n_components=n_components)
# Note: Data is already flattened
X_train_flat = X_train
X_test_flat = X_test
pca.fit(X_train_flat)
X_train_pca = torch.FloatTensor(pca.transform(X_train_flat))
X_test_pca = torch.FloatTensor(pca.transform(X_test_flat))
print(X_train_pca)
tensor([[ 1.8300, 0.5721, 0.0553, ..., -0.9327, 1.7091, -1.0749],
[ 0.8860, -4.1798, 1.3963, ..., 0.1214, -0.9330, 0.1368],
[-0.2782, 1.7010, 0.4974, ..., -0.4593, -1.0291, 1.7501],
...,
[ 0.2924, -4.0464, -1.2219, ..., -0.9095, 0.9783, 0.8630],
[ 0.1567, 1.2983, -4.0294, ..., -3.1340, -2.1575, 0.3926],
[ 4.4576, 1.2257, 0.7489, ..., -0.9504, -1.7016, -1.8599]])
[8]:
# define corresponding linear model for comparison
linear_model = LinearModelBaseline(X_train_flat.shape[1])
[9]:
# define model using pca featues
pca_model = LinearModelPCA(X_train_flat.shape[1], n_components)
[10]:
# define hybrid model
hybrid_model = QuantumReservoir(X_train_flat.shape[1], n_components, n_modes=M, n_photons=N)
pcvl.pdisplay(hybrid_model.quantum_layer.ansatz.circuit)
Quantum Reservoir Created:
Input size (PCA components): 8
Quantum output size: 495
Total features to classifier: 1279
[10]:
[11]:
# Loss function and optimizer
criterion = nn.CrossEntropyLoss()
optimizer_linear = torch.optim.Adam(linear_model.parameters(), lr=0.001)
optimizer_pca = torch.optim.Adam(pca_model.parameters(), lr=0.001)
optimizer_hybrid = torch.optim.Adam(hybrid_model.parameters(), lr=0.001)
# Create DataLoader for batching
batch_size = 128
train_dataset = torch.utils.data.TensorDataset(X_train, X_train_pca, y_train)
train_loader = torch.utils.data.DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
# Training loop
num_epochs = 25
history = {
'hybrid': {'loss': [], 'accuracy': []},
'pca': {'loss': [], 'accuracy': []},
'linear': {'loss': [], 'accuracy': []},
'epochs': []
}
for epoch in range(num_epochs):
running_loss_hybrid = 0.0
running_loss_linear = 0.0
running_loss_pca = 0.0
hybrid_model.train()
linear_model.train()
pca_model.train()
for i, (images, pca_features, labels) in enumerate(train_loader):
# Hybrid model - Forward and Backward pass
outputs = hybrid_model(images, pca_features)
loss = criterion(outputs, labels)
optimizer_hybrid.zero_grad()
loss.backward()
optimizer_hybrid.step()
running_loss_hybrid += loss.item()
# Comparative linear model - Forward and Backward pass
outputs = linear_model(images)
loss = criterion(outputs, labels)
optimizer_linear.zero_grad()
loss.backward()
optimizer_linear.step()
running_loss_linear += loss.item()
# Comparative pca model - Forward and Backward pass
outputs = pca_model(images, pca_features)
loss = criterion(outputs, labels)
optimizer_pca.zero_grad()
loss.backward()
optimizer_pca.step()
running_loss_pca += loss.item()
avg_loss_hybrid = running_loss_hybrid/len(train_loader)
avg_loss_linear = running_loss_linear/len(train_loader)
avg_loss_pca = running_loss_pca/len(train_loader)
history['hybrid']['loss'].append(avg_loss_hybrid)
history['linear']['loss'].append(avg_loss_linear)
history['pca']['loss'].append(avg_loss_pca)
history['epochs'].append(epoch + 1)
hybrid_model.eval()
linear_model.eval()
pca_model.eval()
with torch.no_grad():
outputs = hybrid_model(X_test, X_test_pca)
_, predicted = torch.max(outputs, 1)
hybrid_accuracy = (predicted == y_test).sum().item() / y_test.size(0)
outputs = linear_model(X_test)
_, predicted = torch.max(outputs, 1)
linear_accuracy = (predicted == y_test).sum().item() / y_test.size(0)
outputs = pca_model(X_test, X_test_pca)
_, predicted = torch.max(outputs, 1)
pca_accuracy = (predicted == y_test).sum().item() / y_test.size(0)
history['hybrid']['accuracy'].append(hybrid_accuracy)
history['linear']['accuracy'].append(linear_accuracy)
history['pca']['accuracy'].append(pca_accuracy)
print(f'Epoch [{epoch+1}/{num_epochs}], LOSS -- Hybrid: {avg_loss_hybrid:.4f}, Linear: {avg_loss_linear:.4f}, PCA: {avg_loss_pca:.4f}'+
f', ACCURACY -- Hybrid: {hybrid_accuracy:.4f}, Linear: {linear_accuracy:.4f}, PCA: {pca_accuracy:.4f}')
Epoch [1/25], LOSS -- Hybrid: 1.6186, Linear: 1.6428, PCA: 1.5413, ACCURACY -- Hybrid: 0.8067, Linear: 0.7933, PCA: 0.8100
Epoch [2/25], LOSS -- Hybrid: 0.9110, Linear: 0.9272, PCA: 0.8344, ACCURACY -- Hybrid: 0.8350, Linear: 0.8250, PCA: 0.8383
Epoch [3/25], LOSS -- Hybrid: 0.6787, Linear: 0.6900, PCA: 0.6258, ACCURACY -- Hybrid: 0.8500, Linear: 0.8567, PCA: 0.8583
Epoch [4/25], LOSS -- Hybrid: 0.5694, Linear: 0.5785, PCA: 0.5287, ACCURACY -- Hybrid: 0.8650, Linear: 0.8633, PCA: 0.8717
Epoch [5/25], LOSS -- Hybrid: 0.5032, Linear: 0.5112, PCA: 0.4697, ACCURACY -- Hybrid: 0.8783, Linear: 0.8750, PCA: 0.8750
Epoch [6/25], LOSS -- Hybrid: 0.4586, Linear: 0.4658, PCA: 0.4298, ACCURACY -- Hybrid: 0.8850, Linear: 0.8867, PCA: 0.8883
Epoch [7/25], LOSS -- Hybrid: 0.4252, Linear: 0.4318, PCA: 0.3999, ACCURACY -- Hybrid: 0.8917, Linear: 0.8833, PCA: 0.8933
Epoch [8/25], LOSS -- Hybrid: 0.3996, Linear: 0.4059, PCA: 0.3768, ACCURACY -- Hybrid: 0.8933, Linear: 0.8900, PCA: 0.8983
Epoch [9/25], LOSS -- Hybrid: 0.3787, Linear: 0.3846, PCA: 0.3581, ACCURACY -- Hybrid: 0.8983, Linear: 0.8900, PCA: 0.9067
Epoch [10/25], LOSS -- Hybrid: 0.3619, Linear: 0.3677, PCA: 0.3430, ACCURACY -- Hybrid: 0.9083, Linear: 0.9033, PCA: 0.9100
Epoch [11/25], LOSS -- Hybrid: 0.3474, Linear: 0.3529, PCA: 0.3300, ACCURACY -- Hybrid: 0.9050, Linear: 0.9017, PCA: 0.9083
Epoch [12/25], LOSS -- Hybrid: 0.3345, Linear: 0.3399, PCA: 0.3184, ACCURACY -- Hybrid: 0.9067, Linear: 0.8983, PCA: 0.9033
Epoch [13/25], LOSS -- Hybrid: 0.3240, Linear: 0.3293, PCA: 0.3088, ACCURACY -- Hybrid: 0.9133, Linear: 0.9050, PCA: 0.9067
Epoch [14/25], LOSS -- Hybrid: 0.3146, Linear: 0.3199, PCA: 0.3002, ACCURACY -- Hybrid: 0.9083, Linear: 0.9083, PCA: 0.9083
Epoch [15/25], LOSS -- Hybrid: 0.3052, Linear: 0.3104, PCA: 0.2919, ACCURACY -- Hybrid: 0.9150, Linear: 0.9083, PCA: 0.9117
Epoch [16/25], LOSS -- Hybrid: 0.2975, Linear: 0.3026, PCA: 0.2848, ACCURACY -- Hybrid: 0.9133, Linear: 0.9100, PCA: 0.9150
Epoch [17/25], LOSS -- Hybrid: 0.2901, Linear: 0.2953, PCA: 0.2781, ACCURACY -- Hybrid: 0.9133, Linear: 0.9133, PCA: 0.9100
Epoch [18/25], LOSS -- Hybrid: 0.2841, Linear: 0.2892, PCA: 0.2727, ACCURACY -- Hybrid: 0.9183, Linear: 0.9183, PCA: 0.9117
Epoch [19/25], LOSS -- Hybrid: 0.2779, Linear: 0.2830, PCA: 0.2671, ACCURACY -- Hybrid: 0.9150, Linear: 0.9167, PCA: 0.9150
Epoch [20/25], LOSS -- Hybrid: 0.2725, Linear: 0.2775, PCA: 0.2621, ACCURACY -- Hybrid: 0.9183, Linear: 0.9217, PCA: 0.9117
Epoch [21/25], LOSS -- Hybrid: 0.2666, Linear: 0.2717, PCA: 0.2566, ACCURACY -- Hybrid: 0.9217, Linear: 0.9167, PCA: 0.9217
Epoch [22/25], LOSS -- Hybrid: 0.2619, Linear: 0.2671, PCA: 0.2525, ACCURACY -- Hybrid: 0.9200, Linear: 0.9150, PCA: 0.9167
Epoch [23/25], LOSS -- Hybrid: 0.2577, Linear: 0.2629, PCA: 0.2486, ACCURACY -- Hybrid: 0.9217, Linear: 0.9217, PCA: 0.9183
Epoch [24/25], LOSS -- Hybrid: 0.2527, Linear: 0.2579, PCA: 0.2440, ACCURACY -- Hybrid: 0.9217, Linear: 0.9167, PCA: 0.9167
Epoch [25/25], LOSS -- Hybrid: 0.2491, Linear: 0.2543, PCA: 0.2409, ACCURACY -- Hybrid: 0.9233, Linear: 0.9233, PCA: 0.9183

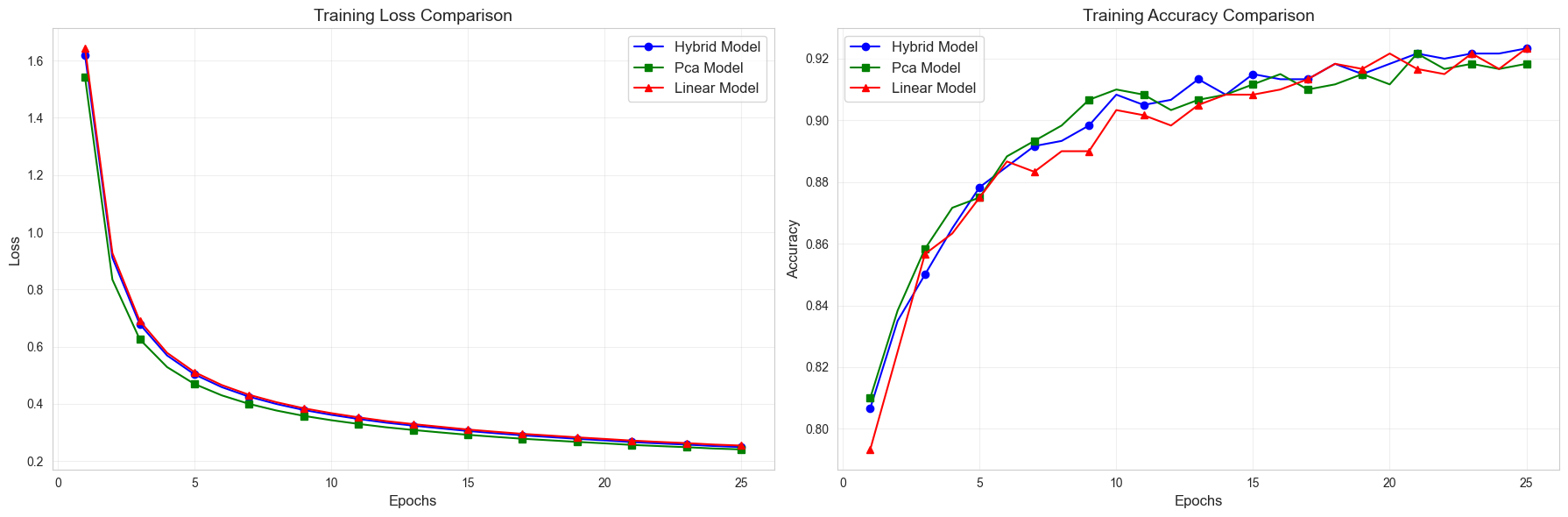

[12]:
import matplotlib.pyplot as plt
def plot_training_comparison(history):
# Create a figure with two subplots side by side
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(18, 6))
# Define colors and styles for consistency
model_styles = {
'hybrid': {'color': 'blue', 'linestyle': '-', 'marker': 'o'},
'pca': {'color': 'green', 'linestyle': '-', 'marker': 's'},
'linear': {'color': 'red', 'linestyle': '-', 'marker': '^'}
}
# Plot loss curves
for model_name, style in model_styles.items():
if model_name in history:
ax1.plot(
history['epochs'],
history[model_name]['loss'],
color=style['color'],
linestyle=style['linestyle'],
marker=style['marker'],
markevery=max(1, len(history['epochs'])//10), # Show markers at 10 points
label=f'{model_name.capitalize()} Model'
)
ax1.set_title('Training Loss Comparison', fontsize=14)
ax1.set_xlabel('Epochs', fontsize=12)
ax1.set_ylabel('Loss', fontsize=12)
ax1.legend(fontsize=12)
ax1.grid(True, alpha=0.3)
# Plot accuracy curves
for model_name, style in model_styles.items():
if model_name in history:
ax2.plot(
history['epochs'],
history[model_name]['accuracy'],
color=style['color'],
linestyle=style['linestyle'],
marker=style['marker'],
markevery=max(1, len(history['epochs'])//10), # Show markers at 10 points
label=f'{model_name.capitalize()} Model'
)
ax2.set_title('Training Accuracy Comparison', fontsize=14)
ax2.set_xlabel('Epochs', fontsize=12)
ax2.set_ylabel('Accuracy', fontsize=12)
ax2.legend(fontsize=12)
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Call the function to generate the plot
plot_training_comparison(history)
[ ]:
